Product Features
- By choosing this product with LOOP by Daikin you support the reuse of refrigerant
- Covers all thermal needs of a building via a single point of contact: accurate temperature control, ventilation, hot water, air handling units and Biddle air curtains
- Wide range of indoor units: possibility to combine VRV with stylish indoor units (Daikin Emura, Perfera)
- Incorporates VRV IV standards & technologies: Variable Refrigerant Temperature, VRV configurator, 7 segment display and full inverter compressors, 4-side heat exchanger, refrigerant cooled PCB, new DC fan motor, ...
- Customize your VRV for best seasonal efficiency & comfort with the weather dependant Variable Refrigerant Temperature function. Increased seasonal efficiency with up to 28%. No more cold draft by supply of high outblow temperatures
- Free combination of outdoor units to meet installation space or efficiency requirements
- Fits any building as also indoor installation is possible as a result of high external static pressure of up to 78.4 Pa. Indoor installation leads to less piping length, lower installation costs, increased efficiency and better visual aesthetics
- Simplified installation & guaranteed optimal efficiency with automatic charging & testing
- Easy compliance with F-gas regulation thanks to automated refrigerant containment check
- Wide piping flexibility: 30m indoor height difference, maximum piping length: 190m, total piping length: 1,000m
- The ability to control each conditioned zone individually keeps VRV system running costs to an absolute minimum
- Spread your installation cost by phased installation
- Keep your system in top condition via the Daikin Cloud Service: 24/7 monitoring for maximum efficiency, extented lifetime and immediate service support thanks to failure prediction
- Available as heating only by irreversible field setting
Benefits
Documentation
Download language
Download language

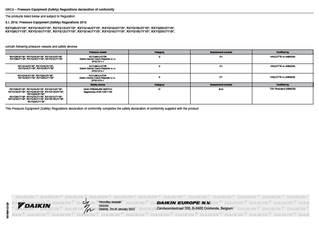

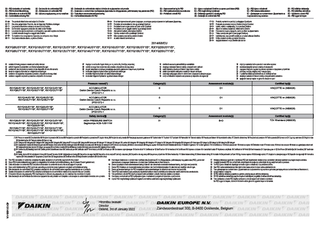

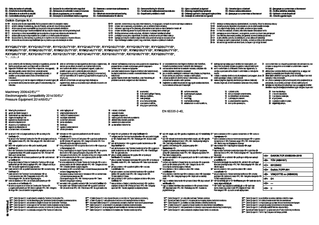

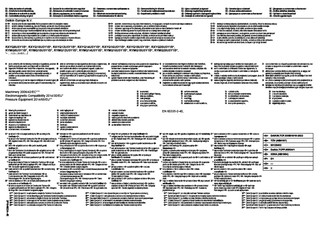

.RYMQ-U5_Safety Declaration of Conformity_2P546224-4E.pdf/jcr:content/renditions/cq5dam.thumbnail.319.319.png "RXYQ-U5(D).RYMQ-U5_Safety Declaration of Conformity_2P546224-4E")

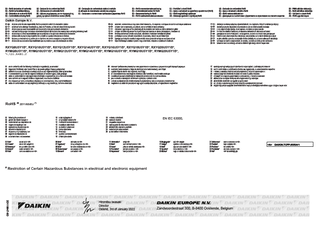

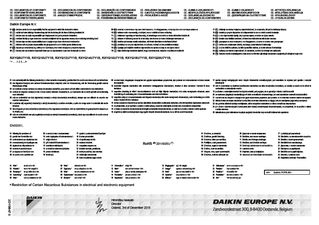

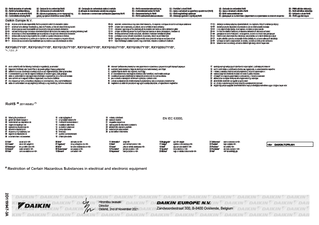

.RYMQ-U5_RoHS Declaration of Conformity_2D119947-5D.pdf/jcr:content/renditions/cq5dam.thumbnail.319.319.png "RXYQ-U5(D).RYMQ-U5_RoHS Declaration of Conformity_2D119947-5D")
Download language

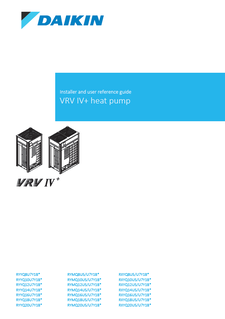

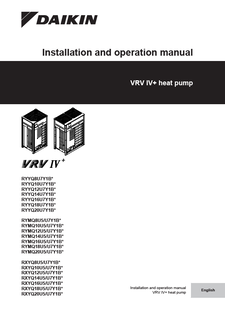

.RYMQ-U(5).RXYQ-U(5)(D)_Installation and operation manual_4PEN546220-1F_English.pdf/jcr:content/renditions/cq5dam.thumbnail.319.319.png "RYYQ-U(5).RYMQ-U(5).RXYQ-U(5)(D)_Installation and operation manual_4PEN546220-1F_English")
