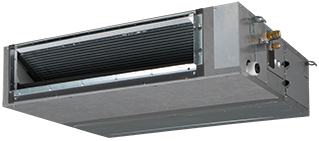

Concealed ceiling unit with medium ESP

FXSA-A

Slimmest yet most powerful medium static pressure unit on the market

Product Features

Optimised design for R-32 refrigerant
Slimmest unit in class, only 245mm (300mm built-in height) and therefore narrow ceiling voids are no longer a challenge
Quiet operation: down to 25dBA sound pressure level
Medium external static pressure up to 150Pa facilitates using flexible ducts of varying lengths
Possibility to change ESP via wired remote control allows optimisation of the supply air volume
Discretely concealed in the wall: only the suction and discharge grilles are visible
15 class unit especially developed for small or well-insulated rooms, such as hotel bedrooms, small offices, etc.
Optional fresh air intake
Flexible installation: air suction direction can be altered from rear to bottom suction and choice between free use or connection to optional suction grilles
Standard built-in drain pump with 625mm lift increases flexibility and installation speed
Fresh air intake integrated in the same system thus reducing installation cost as no additional ventilation device is required

Benefits

Multi tenant (optional)

The indoor unit's main power supply can be turned off when leaving the hotel or office building.
Onecta app (optional) (optional)

Control your indoor climate from any location via smartphone or tablet
Home leave operation

Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
Fan only

The unit can be used as fan, blowing air without heating or cooling.
Auto cooling-heating changeover (heat pump)

Automatically selects heating or cooling mode to achieve the set temperature.
Whisper quiet

Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
Fan speed steps (3 steps + auto)

Allows to select up to the given number of fan speed.
Dry programme

Allows humidity levels to be reduced without variations in room temperature.
Air filter (pre filter)

Removes airborne dust particles to ensure a steady supply of clean air.
Weekly timer (optional)

Can be set to start heating or cooling anytime on a daily or weekly basis.
Infrared remote control (optional - must be combined with Madoka wired remote controller)

Starts, stops and regulates the air conditioner from a distance.
Wired remote control (required option)

Starts, stops and regulates the air conditioner.
Centralised control (optional)

Starts, stops and regulates several air conditioners from one central point.
Auto-restart

The unit restarts automatically at the original settings after power failure.
Self diagnosis

Simplifies maintenance by indicating system faults or operating anomalies.
Drain pump kit (standard)

Facilitates condensation draining from the indoor unit.
